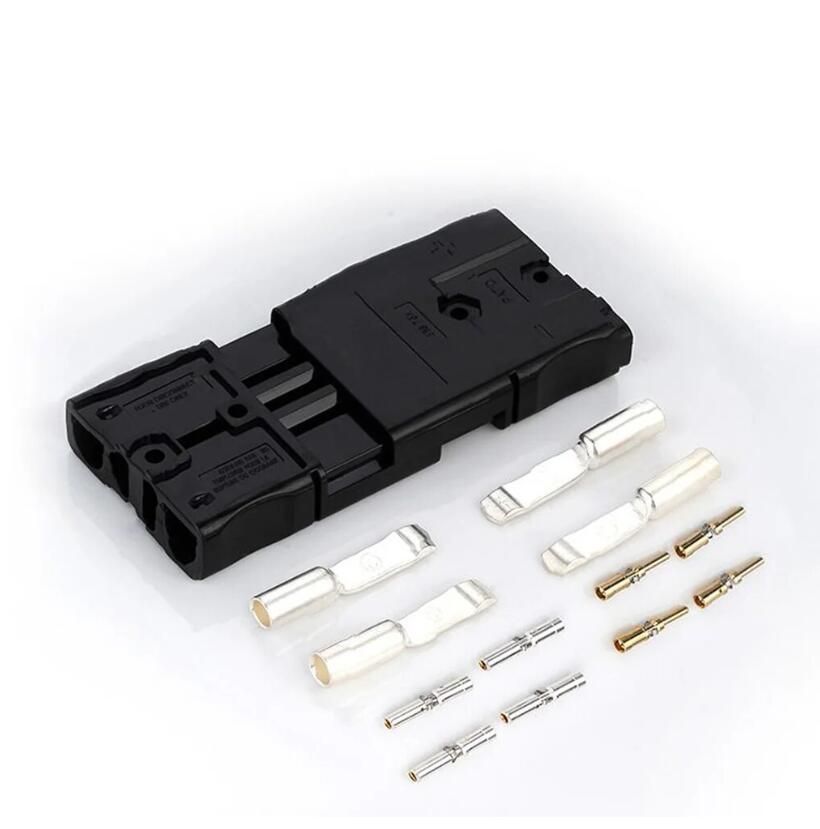

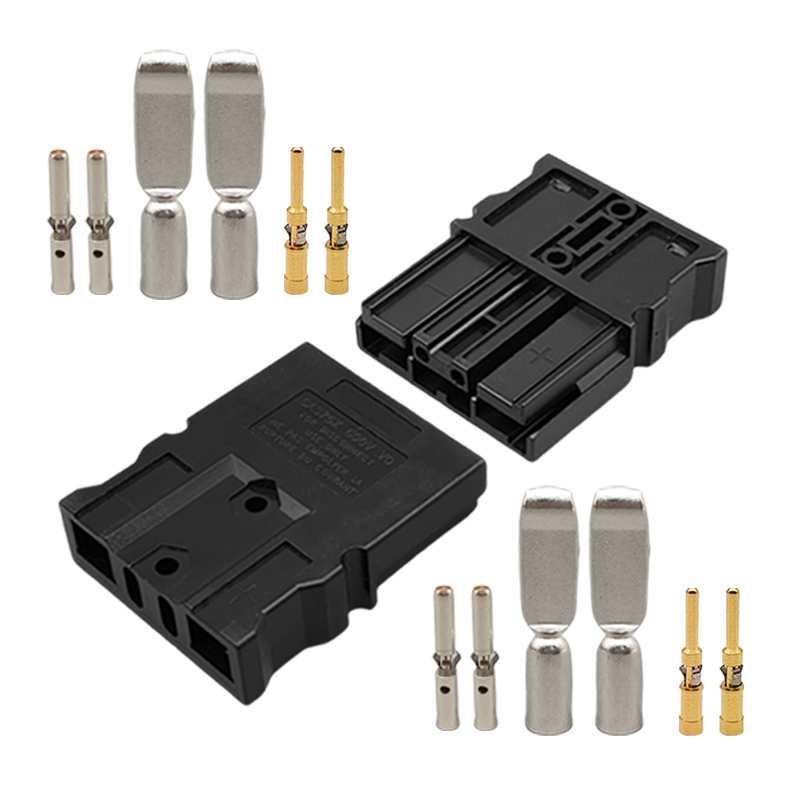

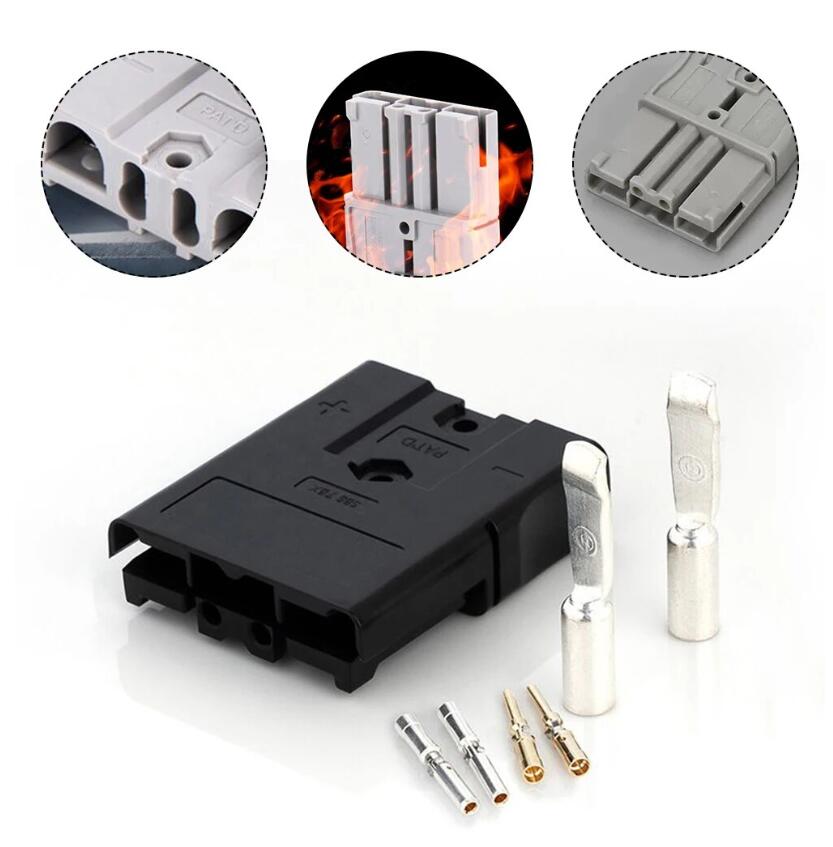

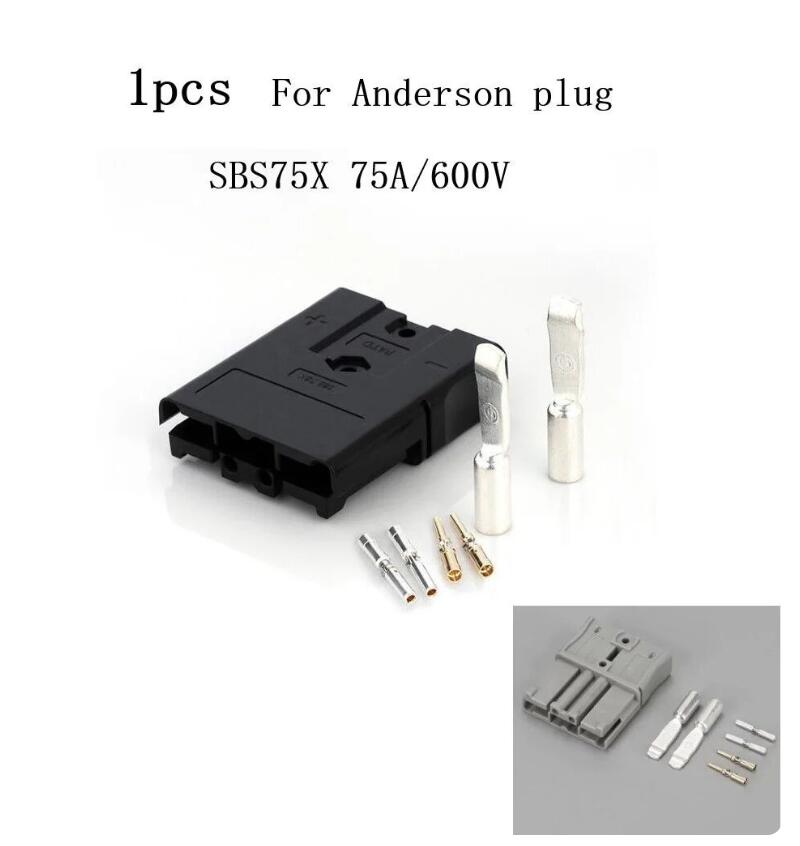

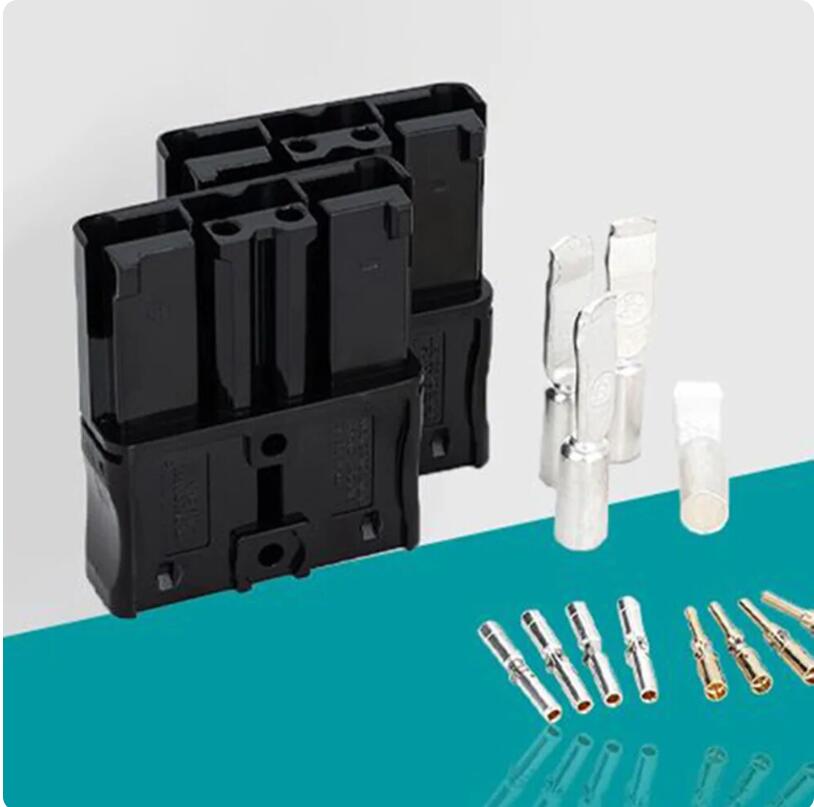

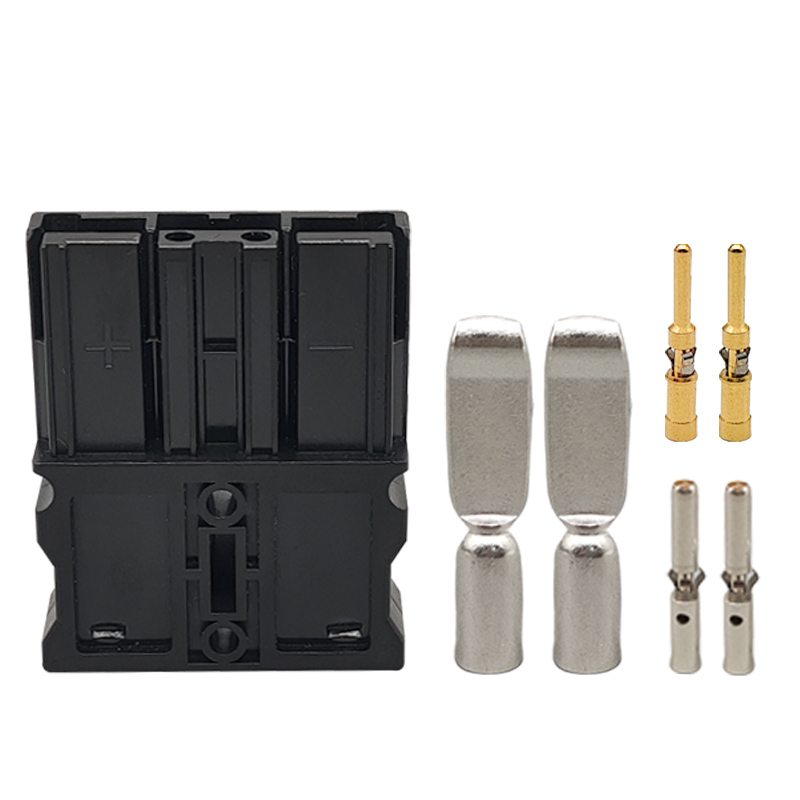

Description
Model Number SBS75X
Interface Type AC/DC
Material Copper silver-plated terminals
Contact Termination The copper is plated with silver
Mounting Type Crimp or weld
Connector Usage Quick charging connection
Number of Positions/Contacts 2pcs main contacts and 4pcs auxiliary pins
Shell Material PC UL94V-0
Current Rating (Amps) 75AMP
Voltage Rating 600V
Name Power Connector
Housing material PC
Portable& easy to use: The bipolar plug is small in size and light in weight, easyto carry and store, convenient for you to use.
Reliablequality: The bipolar plugs are made of high-quality aluminum alloy material,which is durable and not easy to break.
Fastcharging speed: The bipolar plug is designed with a quick charging speed, whichcan be charged quickly and easily.
Application field: large equipment places such as transportationrailway/electric forklift sightseeing car/storage forklift
