Forklift battery connectors come in several categories based on voltage, amperage, and application type. These connectors are critical for safely transferring power between the forklift battery and the vehicle or charger. Here’s a breakdown of the main categories of forklift battery connectors:
By Voltage/Amperage Rating
These ratings determine how much power the connector can handle. Common categories include:
-
50 Amp
-
For smaller equipment or pallet jacks.
-
Typically used in light-duty applications.
-
-
175 Amp
-
Most common for mid-sized electric forklifts.
-
Used in 24V or 36V systems.
-
-
350 Amp
-
Heavy-duty forklifts or high-capacity battery systems.
-
Supports 36V, 48V, or even 80V configurations.
-

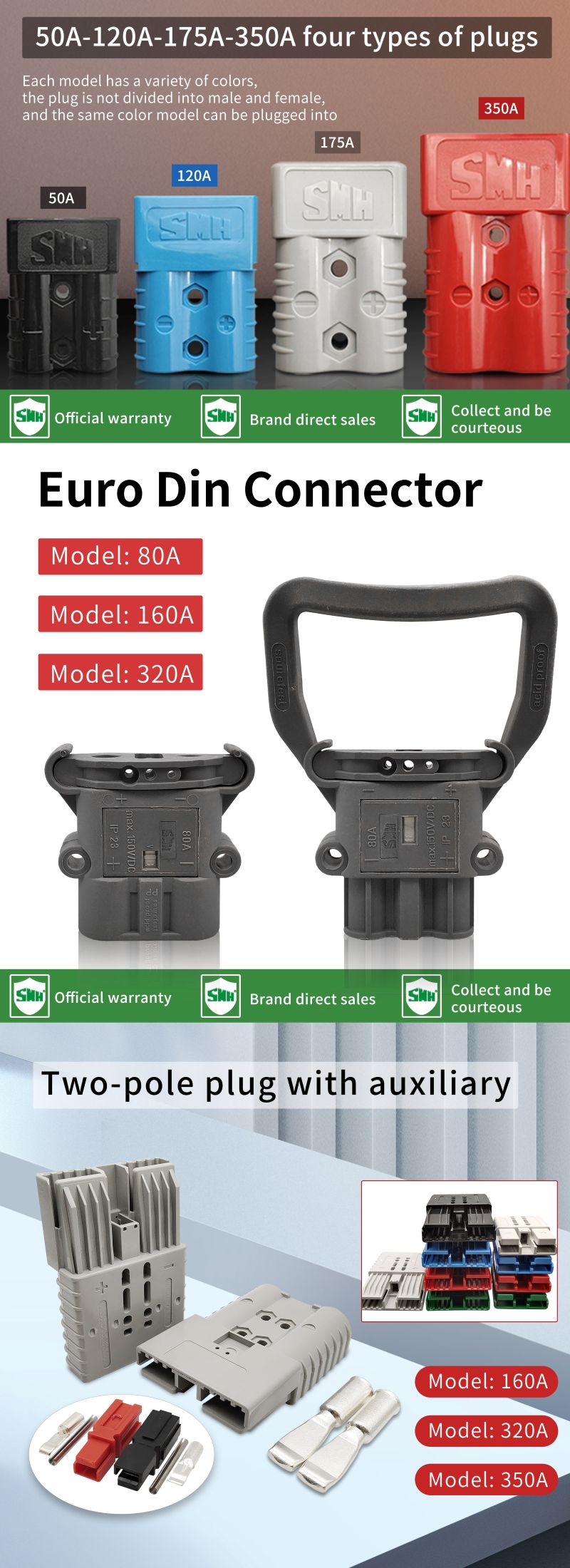

By Connector Type
These are typically color-coded and keyed to prevent mismatched connections:
-
SMH SY Series
-
SY50, SY175, SY350 based on amperage.
-
Genderless connectors (same plug on both sides).
-
Commonly used across many forklift brands.
-
-
Euro DIN Connectors
-
Compliant with European standards.
-
Often used on European-manufactured forklifts.
-
-
SMH SBE SBX Series
-
SBE160, SBE320, SBX350 based on amperage.
-
Genderless connectors (same plug on both sides).
-
Commonly used across many forklift brands.
-
By Application
Some connectors are optimized for specific functions:
-
Battery-to-Truck Connectors
-
Heavy-duty and designed for frequent plugging/unplugging.
-
-
Battery-to-Charger Connectors
-
May include extra features like temperature sensors.
-
-
Opportunity/fast charging connectors
-
Built to handle higher charge rates and frequent cycles.
-
