The SBS75X connector is designed for safe, high-power connections with auxiliary signaling or monitoring features. Here’s a detailed breakdown of its applications and advantages:

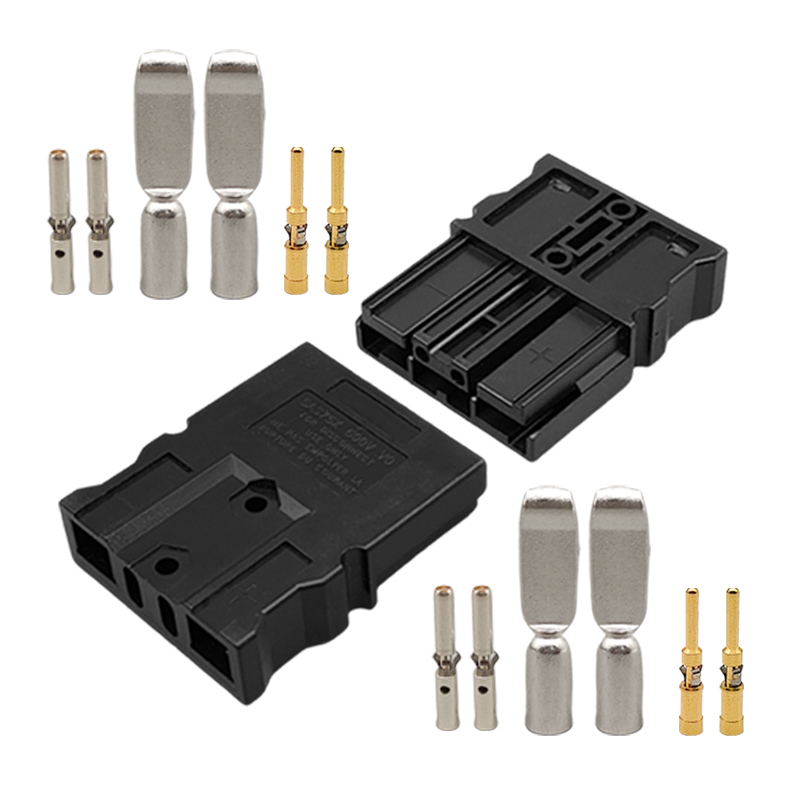

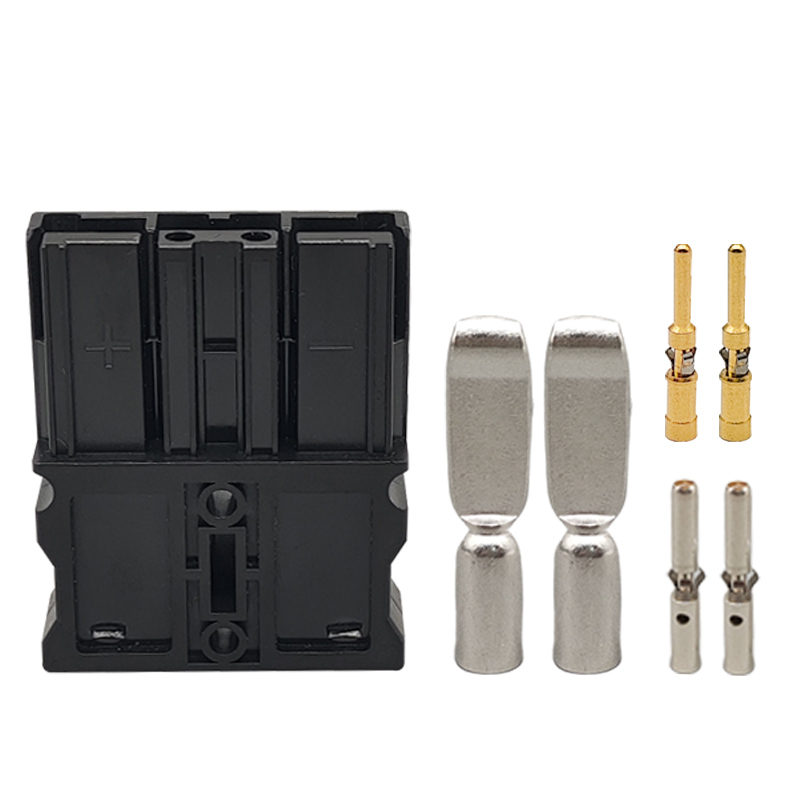

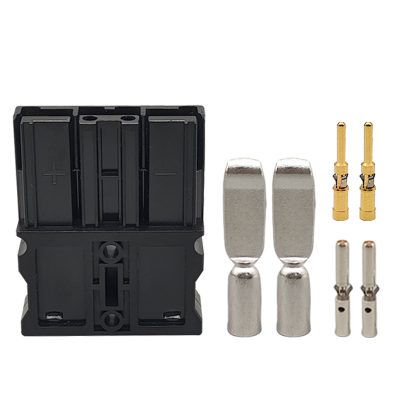

SBS75X Connector – Key Specs
-
Amperage: 75 Amps
-
Voltage: Up to 600V (DC)
-

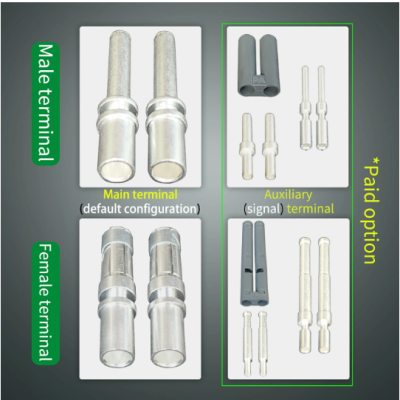

Contacts: 2 power contacts + up to 2 auxiliary signal contacts
-
Genderless: Mates to itself
-
Touch-safe design: UL 1977 finger-proof
-
Typical wire range: 6 AWG to 12 AWG (power), 16–20 AWG (auxiliary)
✅ Common Applications

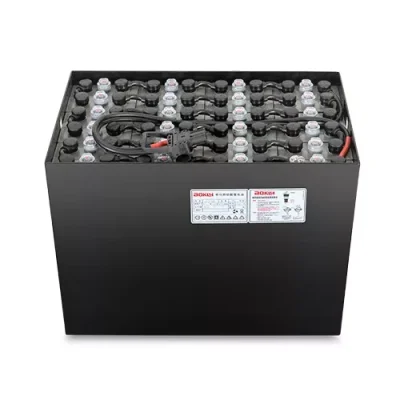

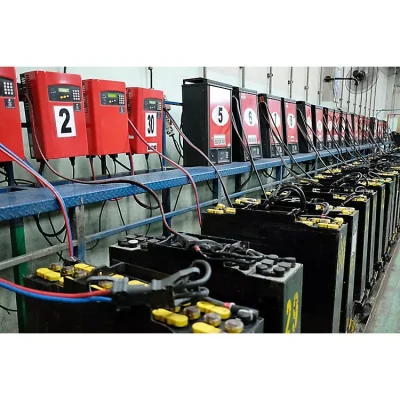

1. Forklift Battery Charging
-
Used for 24V, 36V, or 48V forklifts.
-
Ideal for medium-duty electric forklifts where moderate power delivery and safety monitoring are required.
-
Auxiliary contacts can be used for temperature sensors or interlock signals to ensure safe charging.
2. Battery Management Systems
-
The auxiliary contacts are often wired into Battery Discharge Indicators (BDIs) or Battery Monitoring Systems (BMS).
-
Useful for detecting battery temperature, voltage levels, or charge cycles.
3. AGVs (Automated Guided Vehicles) & AMRs (Autonomous Mobile Robots)
-
Compact, touch-safe form factor makes it ideal for robotic battery packs.
-
Easy to mate/unmate with minimal risk of shorting.
4. Medical and Laboratory Equipment
-
Used in battery backup systems where secure, low-risk connections are vital.
-
Provides both power and communication in a single connector.
5. Telecom & UPS Systems
-
Reliable for DC power connections in backup or mobile power supplies.
-
Often used where hot-swapping batteries or remote monitoring is needed.
Why Choose SBS75X?
-
Safety: Finger-proof design helps meet stringent safety requirements.
-
Monitoring: Dual auxiliary contacts let you integrate smarter battery and charger systems.
-
Versatility: Suitable for both charging and discharging applications.
-
Durability: Rated for hundreds of mating cycles in industrial settings.
