The Euro DIN connector, commonly used for forklift lithium and lead-acid batteries, includes auxiliary pins that provide additional functionality beyond power transfer. These pins play a crucial role in battery monitoring, communication, and safety features.
1. Purpose of Auxiliary Pins in Euro DIN Connectors
Auxiliary pins are used for:
-
Temperature Sensing (Thermistor or NTC/PTC sensors) – Helps prevent overheating during charging and discharging.
-
Battery Identification (ID Resistor) – Ensures compatibility with the correct charger.
-
Charge Interlock – Prevents vehicle operation while the battery is charging.
-
State of Charge (SOC) Monitoring – Communicates battery charge status to the charger or forklift system.
2. Common Auxiliary Pin Configurations
Euro DIN connectors generally follow DIN 43589-1 and can include:
-
Main Power Pins: Used for high-current power transfer (Positive & Negative).
-
Auxiliary Contacts (AUX1, AUX2, AUX3, etc.): Used for sensing and communication.
-
Pilot Contacts (Pilot Pin): Used for smart battery communication or interlock functions.
3. How Auxiliary Pins Improve Lithium Battery Performance
-
Optimized Charging – Allows intelligent chargers to adjust voltage and current based on battery condition.
-
Enhanced Safety – Prevents thermal runaway and ensures proper shutdown during faults.
-
Extended Battery Life – Enables battery management systems (BMS) to communicate with the charger.

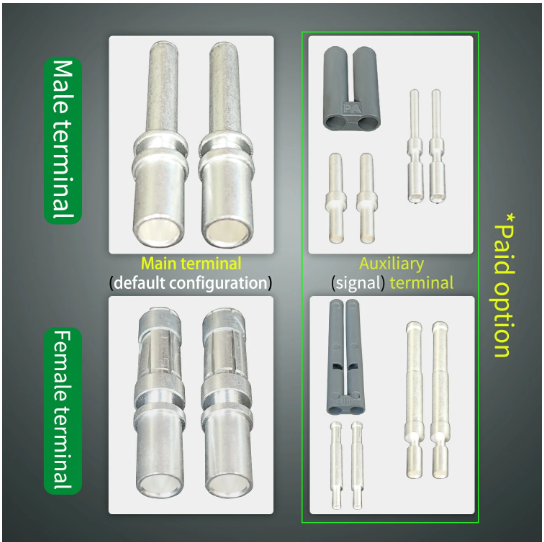

SMH Euro din connector auxiliary pins is optional accessory, one set includes 4pcs small pins.
